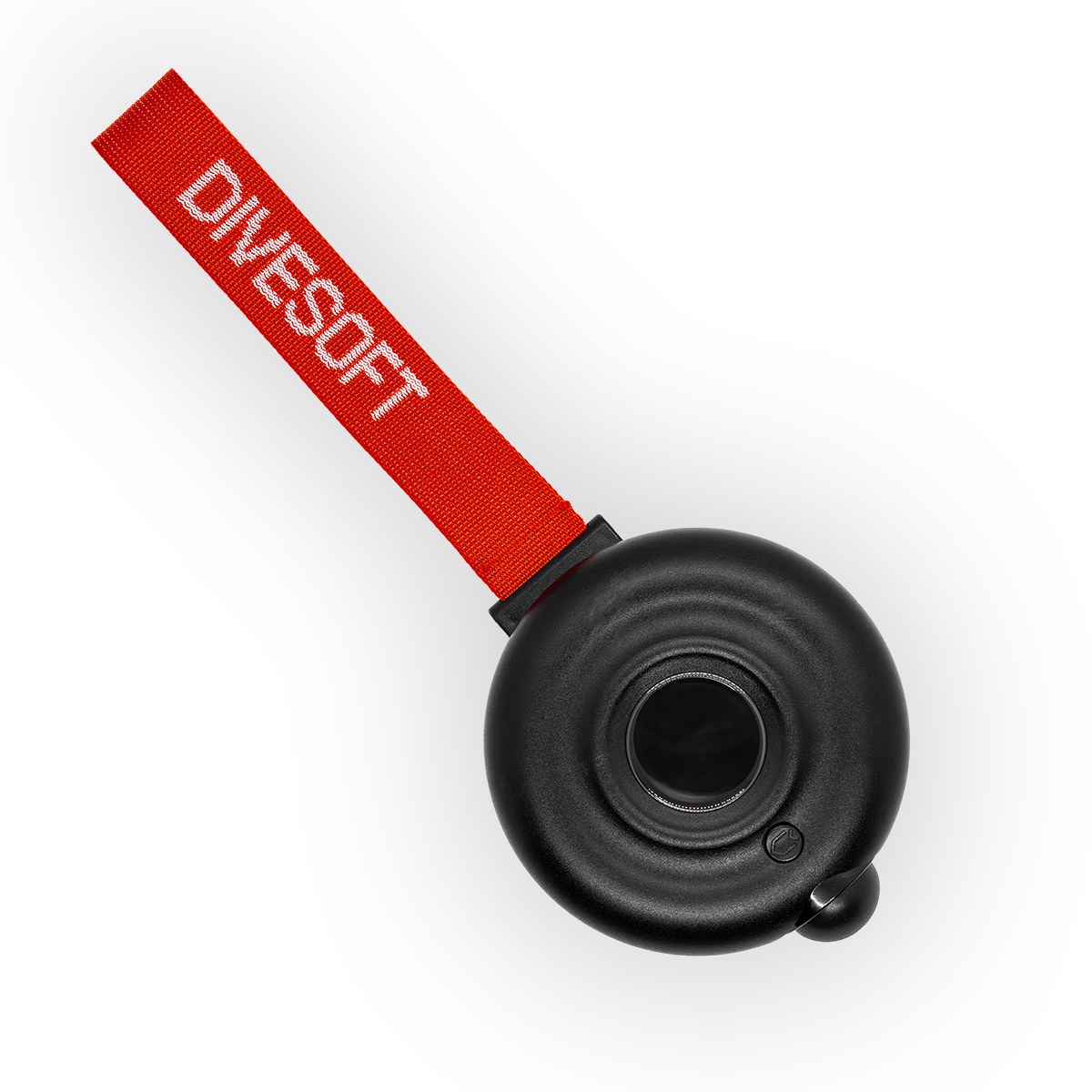

Divesoft ECHO
ECHO is a gas analyzer built for technical divers who take their breathing gas seriously. Whether you're blending nitrox for a deep reef dive or mixing trimix for something more ambitious, ECHO tells you exactly what's in your cylinder — so you can focus on the dive, not the doubt.
Connect it to the Divesoft App via Bluetooth and your whole blending workflow just clicks into place, from analysis to labeled cylinder in minutes.
ECHO also checks for carbon monoxide in your breathing gas — the kind of contamination you can't see, smell, or taste, but absolutely need to know about before you descend. It's the safety check that's easy to skip and impossible to regret doing.
The helium measurement is handled by a clever acoustic sensor that never needs replacing. Less maintenance, one less thing to worry about between trips.
Light enough to toss in your dive bag without a second thought, and tough enough to survive the journey, ECHO is the kind of gear that quietly earns its place on every packing list.
Build time: Due to high demand, Divesoft build time is estimated at 10 working days.
Oxygen Sensor Options
- Electrochemical — ships with the Divesoft R22S electrochemical O₂ sensor. Built-in battery and sensor carry a 12-month warranty; up to 100 hours per charge.
- Solid State — ships with the maintenance-free DVO2 solid-state O₂ sensor and connector cable. Sensor carries a 24-month warranty; up to 50 hours per charge.
Configuration Options
- Analyzer Only — the ECHO analyzer and everything needed to start measuring.
- Set with Flow Limiter — adds the Professional Flow Limiter Mk2 (DIN G5/8) and connection hose for controlled, repeatable sampling straight from the cylinder valve.

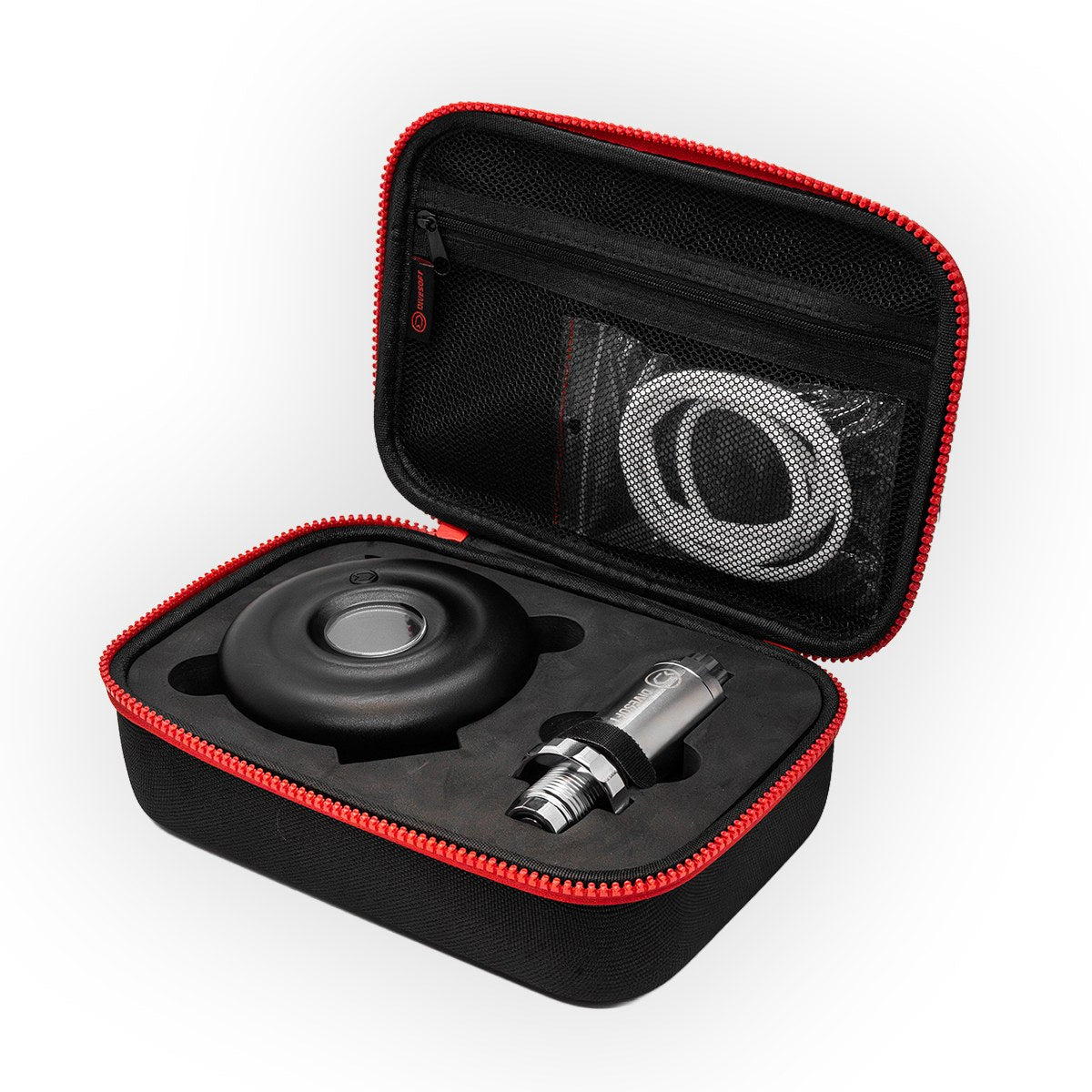

What’s in the Box
Electrochemical, Analyzer Only (DS-8500):

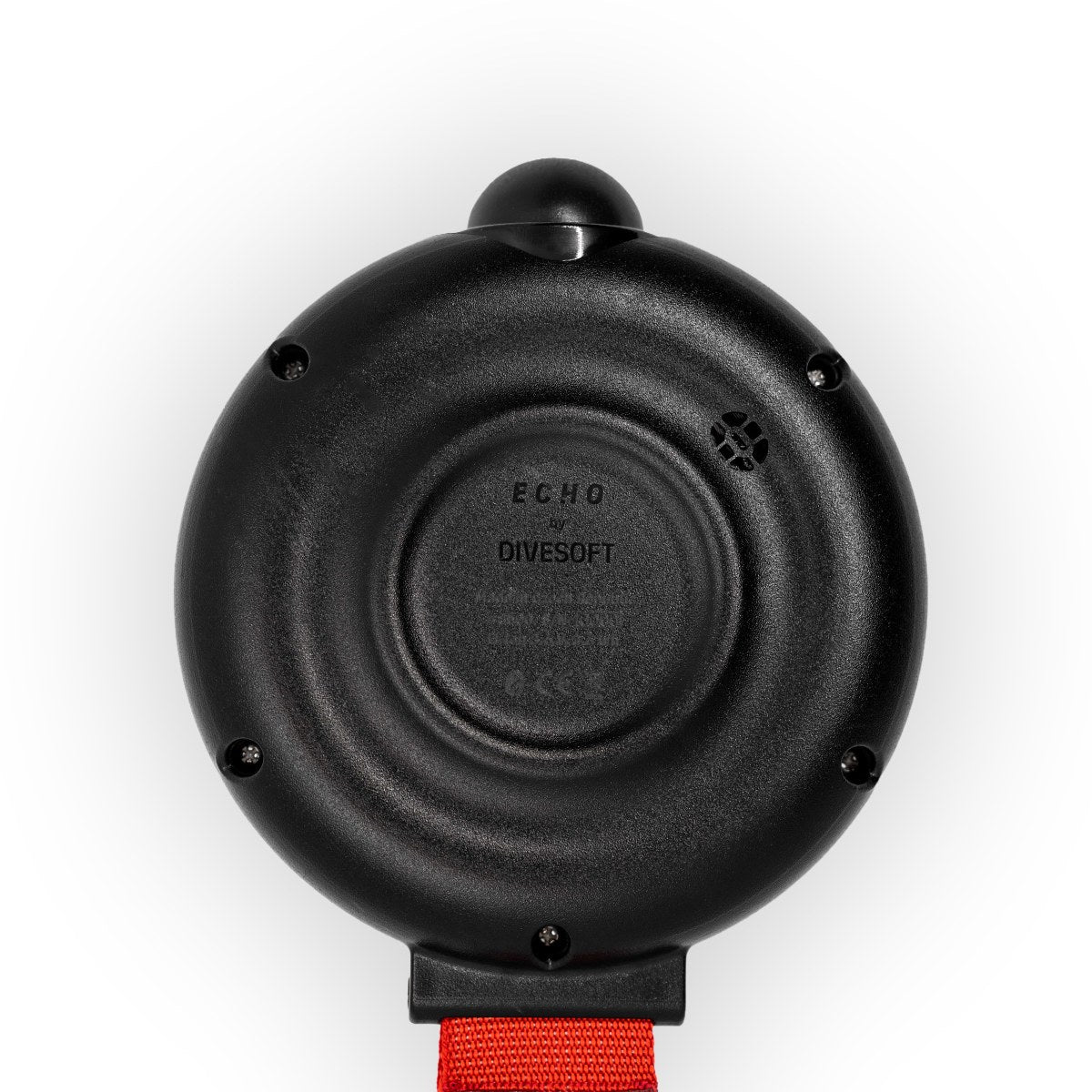

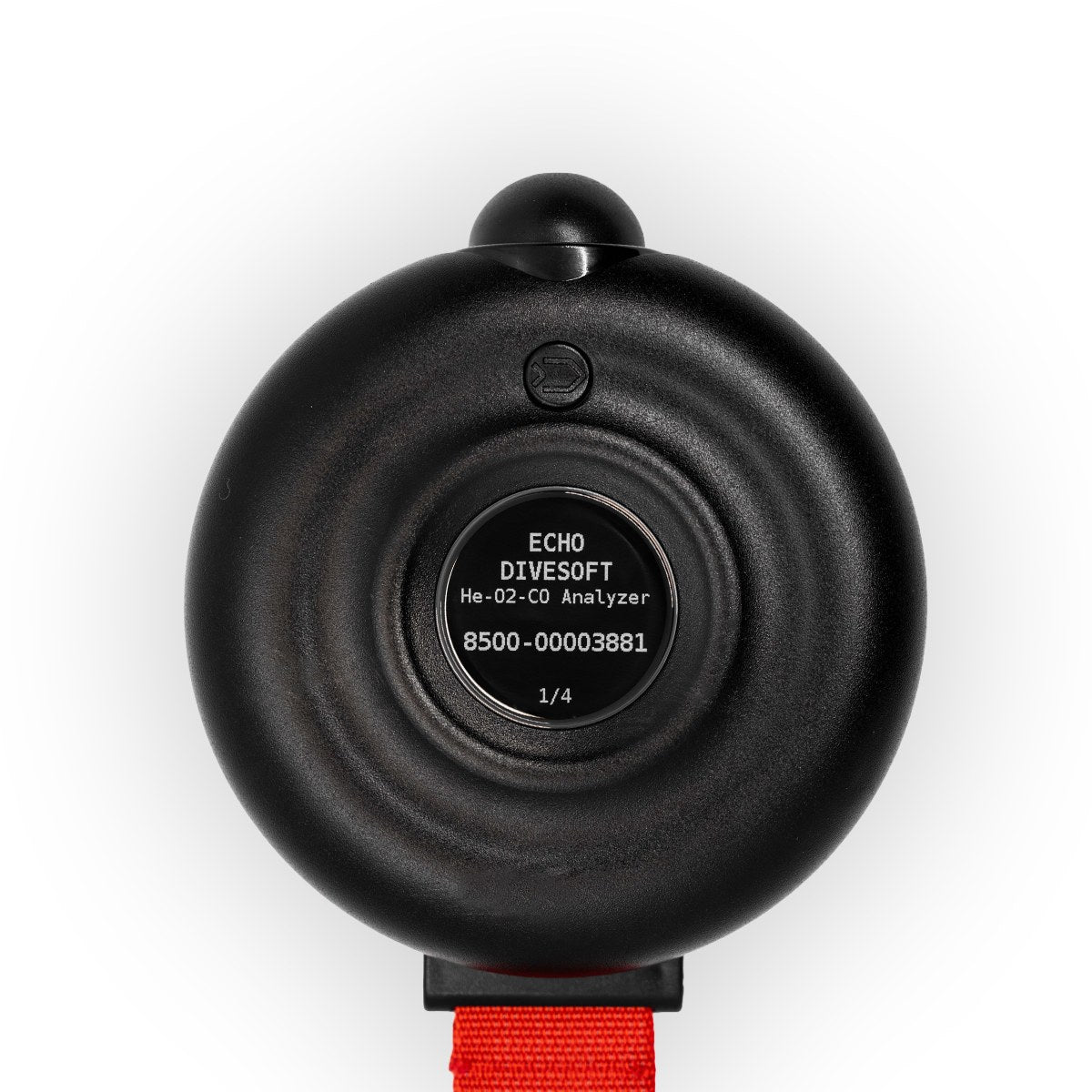

- ECHO analyzer

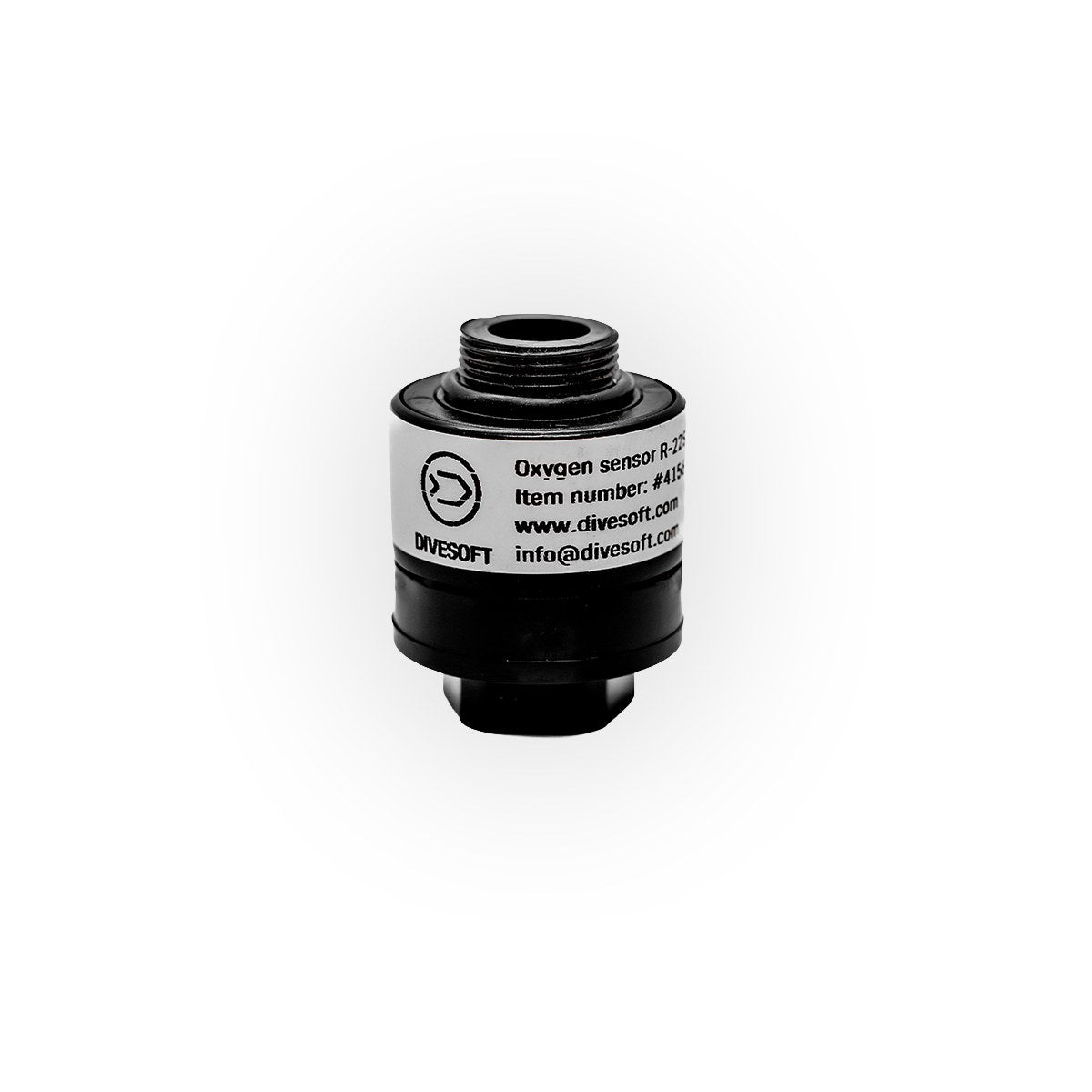

- Oxygen Sensor Divesoft R22S

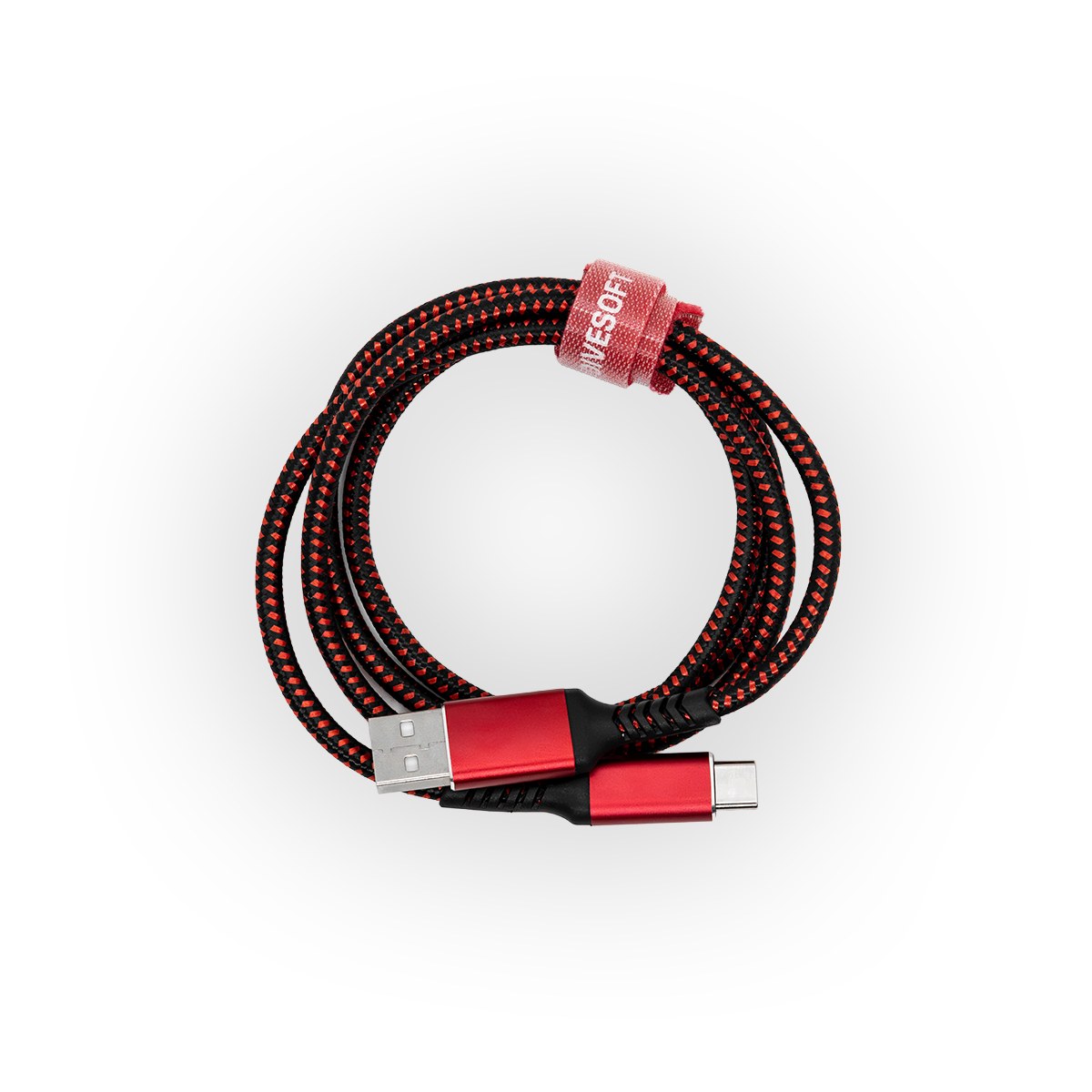

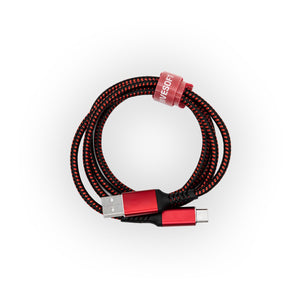

- USB-C cable
- EVA case
Solid State, Analyzer Only (DS-8528):
- ECHO analyzer

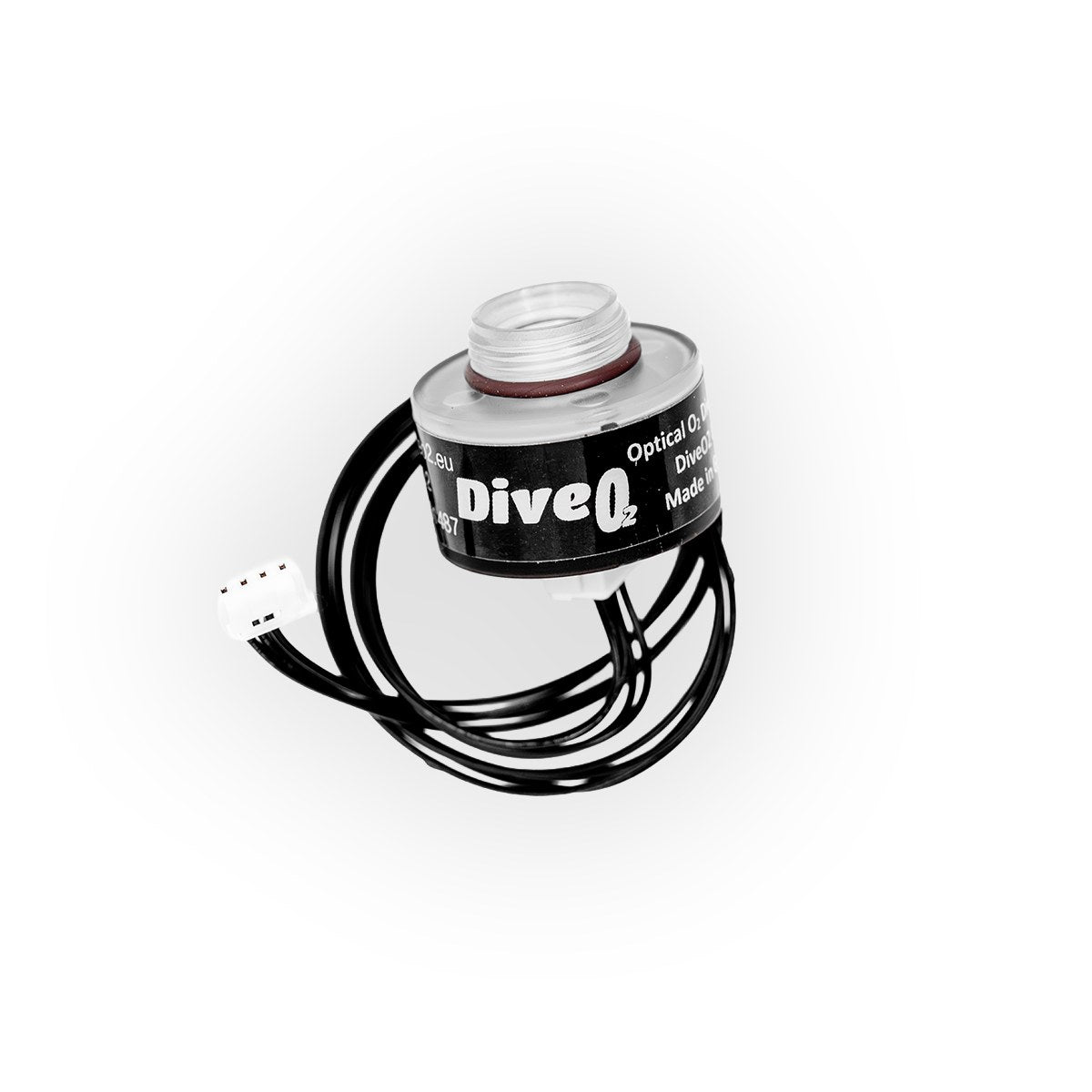

- DVO2 solid-state oxygen sensor
- DVO2 connector cable
- USB-C cable
- EVA case
Set with Flow Limiter (DS-8529 / DS-8530) adds:

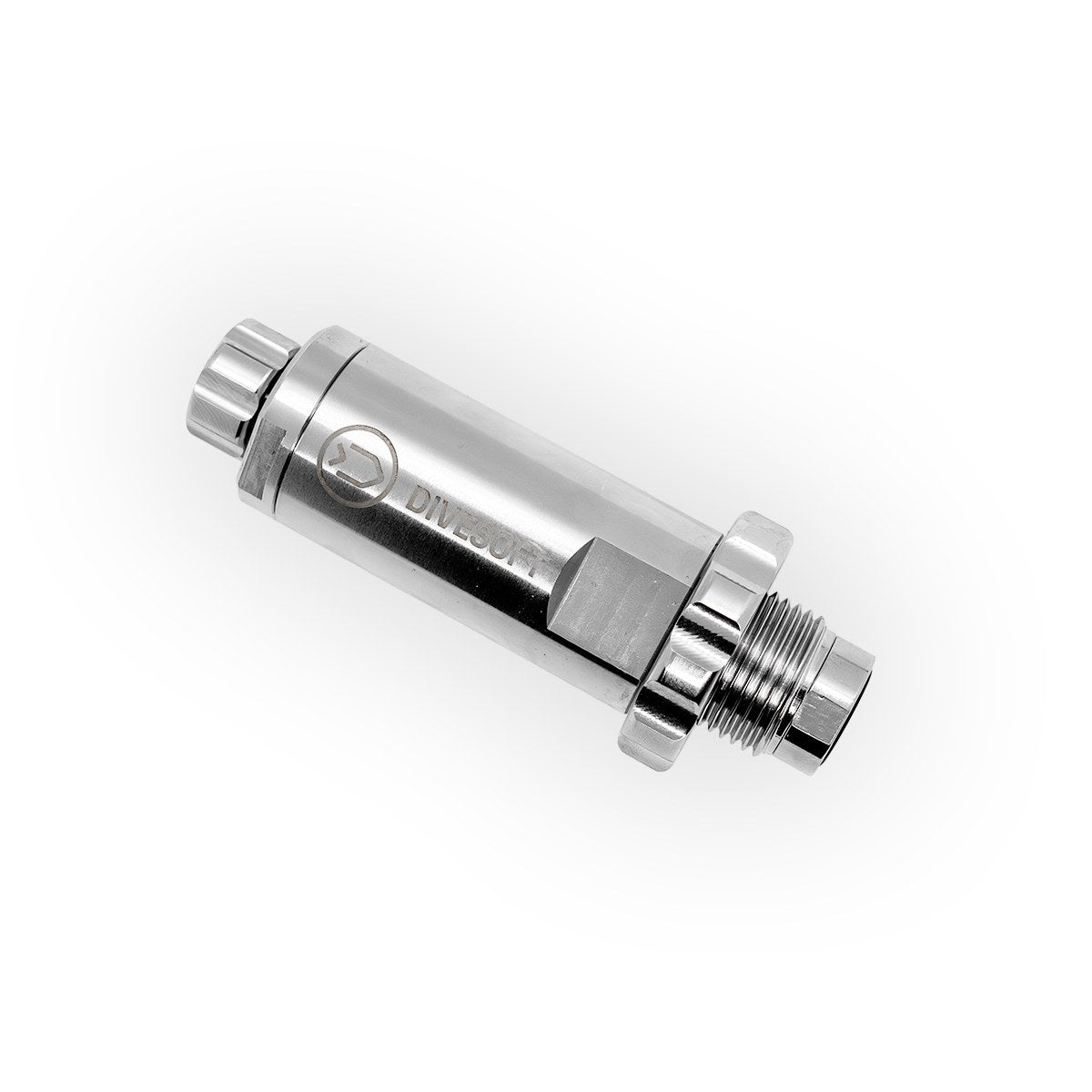

- Professional Flow Limiter Mk2, DIN G5/8

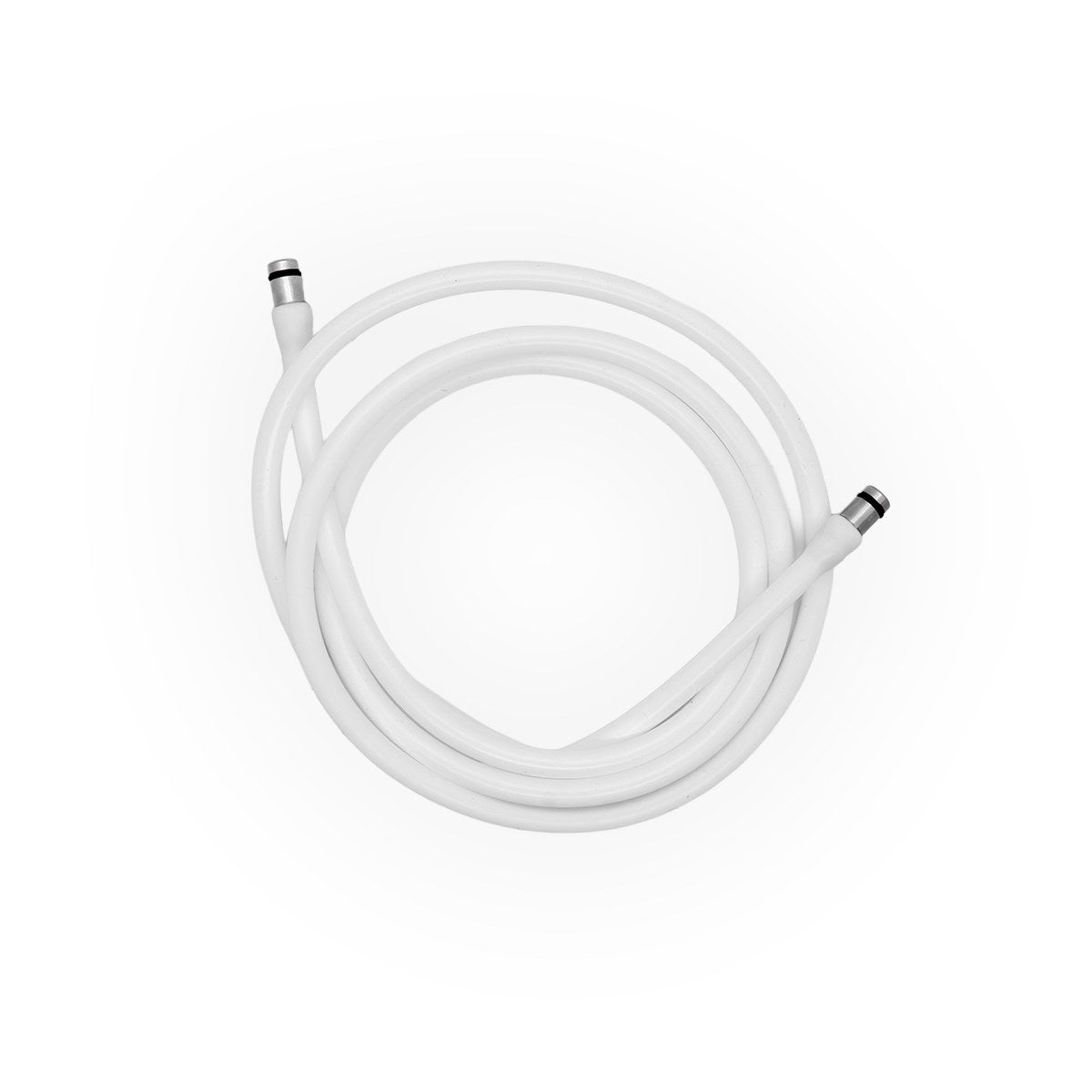

- Connection hose
Specifications
- Dimensions: 127 mm diameter, 37.5 mm thick, 410 mm length including strap
- Weight: 288 g (analyzer including strap)
- O₂ measurement: 0–100%, resolution 0.1%, T90 ~5 s
- He measurement: 0–100%, resolution 0.1%, acoustic speed-of-sound, T90 ~5 s
- CO measurement: 0–100 ppm, alarm threshold 5 ppm
- Display: HR-TFT, optimized for bright environments
- Battery: Rechargeable Li-ion, 3.7 Wh — up to 100 hrs (Electrochemical) / 50 hrs (Solid State)
- Charging: USB-C, 5 V / 1 A, ~2.5 hours
- Connectivity: Bluetooth Low Energy, Divesoft App compatible

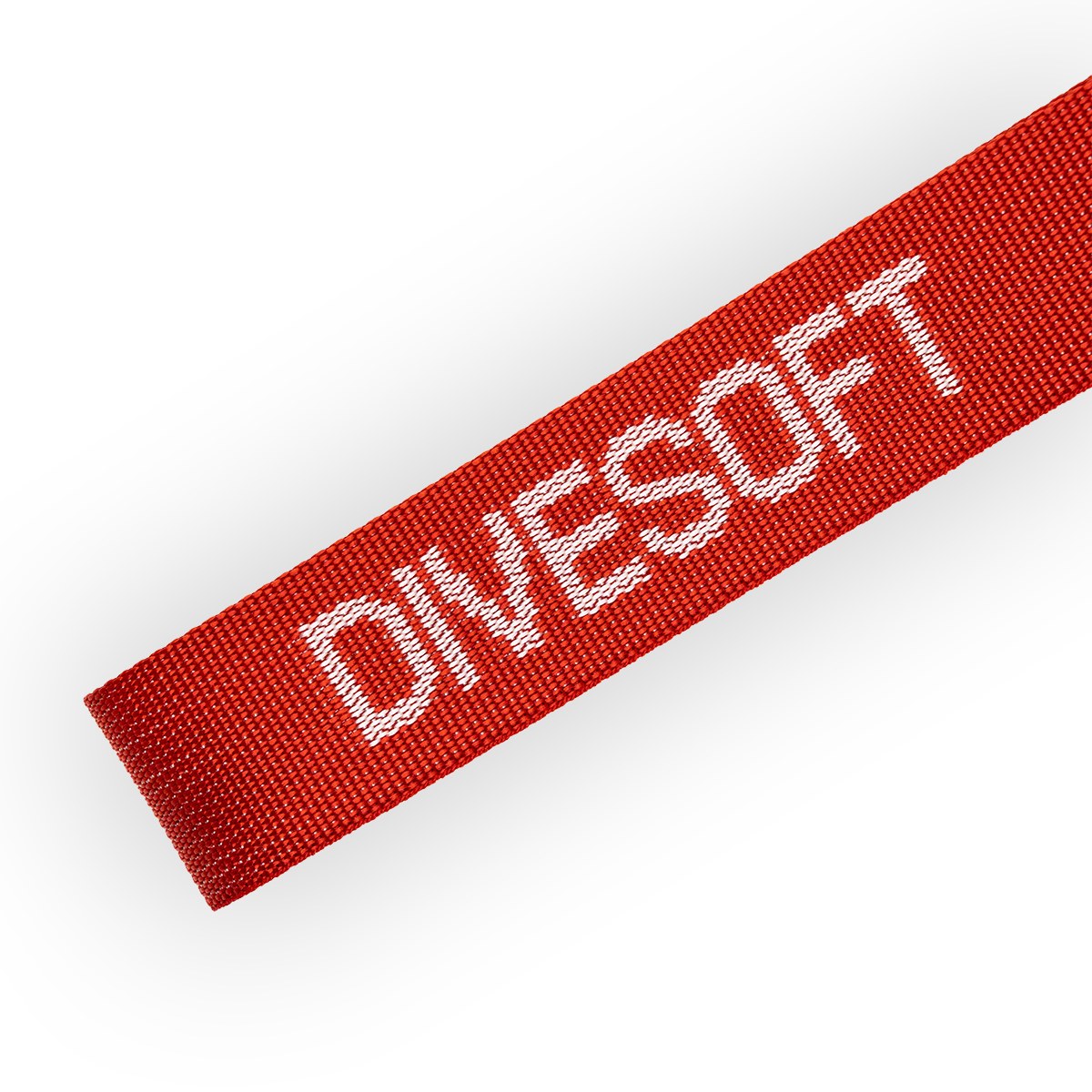

- Housing: PC-ABS with integrated wrist strap
- Operating temperature: 0 to +45°C (32 to 113°F)
- Storage temperature: 10 to 30°C (50 to 86°F)
- Operating humidity: 5 to 95% RH, non-condensing
- Warranty: Analyzer 24 months; electrochemical O₂ sensor & battery 12 months; solid-state O₂ sensor 24 months
